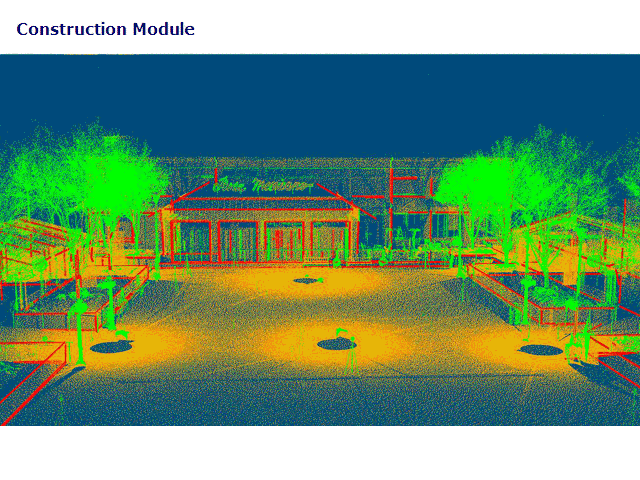

Construction Module

Our unique construction module can automatically fit a polygonal surface to point clouds for pipes, edges, curbs, traffic barriers, tunnels, etc. And also, it can fit a spline surface on a terrain surface with the control of slope and elevation. Additionaly, it allows you to extract planar area from point clouds to create a low polygon building, and helps you remove small parts from point clouds to get desired surface points. The construction module is available only in VRMesh Studio.


Example 1: Road resurfacing


Example 2: Fit curb/edge/profile to point clouds


Example 3: Create road surface by fitting profile


Example 4: Create tunnel by fitting profile


Example 5: Extract planar area from point clouds to create a low polygon building


Example 6: Remove small parts from point clouds to get desired surface points
